by Dr. Giesenhagen

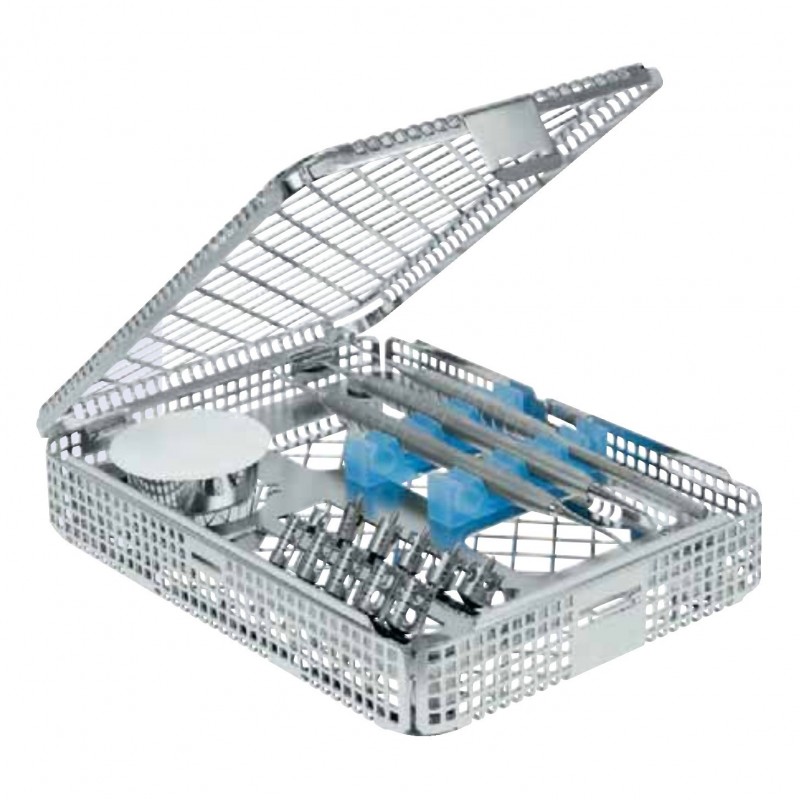

Complete Set incl. 1 x washbasket 85.184.18 and instruments:
- 47.520.22 Adenoid Curette Ø 3 mm, 30° angled, double-ended
- 47.520.23 Adenoid Curette Ø 3 mm
- 47.520.25 Ring Breaker, small/large, double-ended
Trephines, short
- 08.910.13S inner Ø 5 mm
- 08.910.08S inner Ø 6 mm
- 08.910.09S inner Ø 7 mm
- 08.910.10S inner Ø 8 mm
- 08.910.11S inner Ø 9 mm
Trephines, with fixation support
- 08.910.13F inner Ø 5 mm
- 08.910.08F inner Ø 6 mm
- 08.910.09F inner Ø 7 mm
- 08.910.10F inner Ø 8 mm
- 08.910.11F inner Ø 9 mm
- 85.251.00 Plain Milling Cutter Ø 6 mm
- 85.251.04 Mixing cup, stainless, with POM Lid, Ø 4 cm
- 47.099.25 Ring Applicator for rings with Ø 5 and Ø 7 mm, extendable to Ø 9 mm by means of the metal ring (47.099.26)
- 47.099.26 Metal ring for ring applicator - for holding bigger bone rings with Ø 9 mm.
In co-operation with Dr. Giesenhagen, the company Helmut Zepf has developed a new Set for the One Step Vertical Augmentation with ring-shaped bone transplants. The aim of this development is an accelerated implant treatment. Thereby, the security of the implantological success as well as the convincing result for the patient and the user have priority. In many cases, this new augmentation method can be used to build up the bone base for the insertion of one or more implants.
With this newly introduced technique, perfectly fitting ring-shaped bone transplants are removed from the chin or retromolar region by means of trephines and fi xed immediately in the receiving area with a screw implant. The local cortical bone structure with spongious parts of vital cells guarantees a safe fixation with short healing time. The set contains all tools and instruments to prepare the implant alveole for the most important sizes of screw implants. On the reverse side you will find the product overview.
Application
The local cortical bone structure with spongious parts of vital cells guarantees a safe fixation with short healing time. The filling of possibly existing cavities is usually made by spongious chips taken from the donor area or by bone substitutes. For an additional coverage of the augmented area with a barrier membrane we recommend our Helmut Zepf Augmentation Kit 47.966.00
| Cod. sorriso | Modello | Descrizione |
| 2098-15070801 | 47.500.31 | 3D One Step Augmentation & Implantation Set |
Pagina del catalogo Helmut Zepf: 07-08
