Dettagli
For measuring of implants with locating screw.

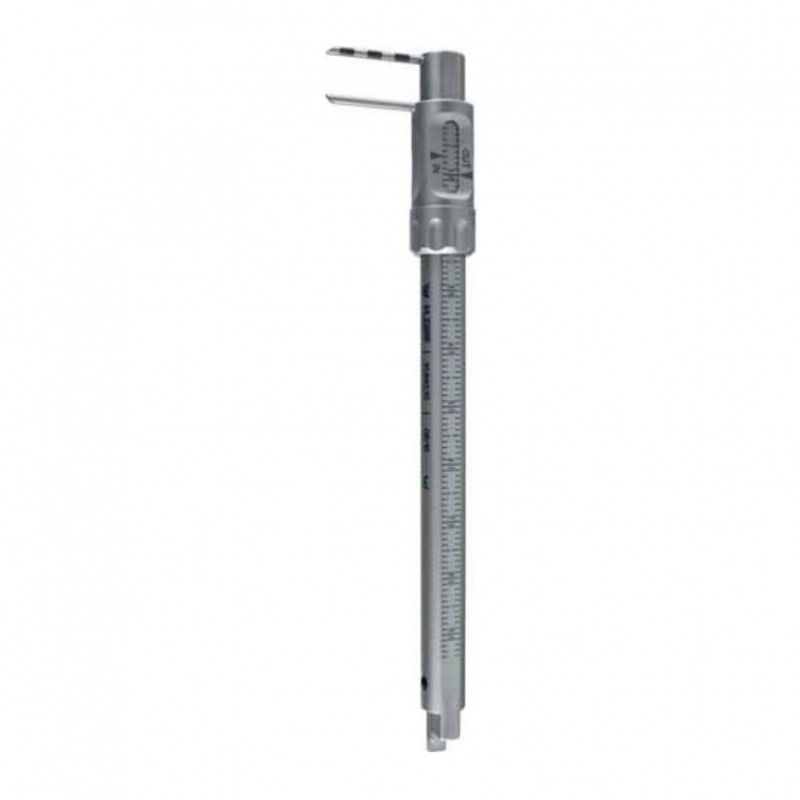

The Sliding Calipers combines a variety of functions in one instrument, thus facilitating the positioning of implants and enlarging the precision. The measuring rods have a thickness of exactly 1.5 mm and allow immediate control of the maximum diameter of the implant which has to be inserted. (In order to assure maximum stability, please chose the largest diameter).
Scientific examinations proved that the wall of the bone should have a thickness of at least 1.5 mm in order to avoid bone resorption after implantation. If the sliding caliper with its two measuring rods is inserted in the interproximal gap and opened in such a way that the measuring rods touch the respective root of the neighbour teeth, the maximum possible diameter of the future implant can be read off from the vernier marked IN. The upper marking OUT shows the determined outside dimension. The new locating screw, at the end of the caliper, allows a fixation of the measured result.
This practice-oriented development represents a significant relief with regard to a
• more precise
• quicker
• secure work.
| Cod. sorriso | Modello | Descrizione |
| 2098-15072601 | 31.693.10 | Calibro scorrevole, acc. to Prof. Dr. med. dent. Gisbert Krekeler |
Pagina del catalogo Helmut Zepf: 07-26
