for microscopically guided elevation of the sinus bottom by Dr. Shakibaie-M.

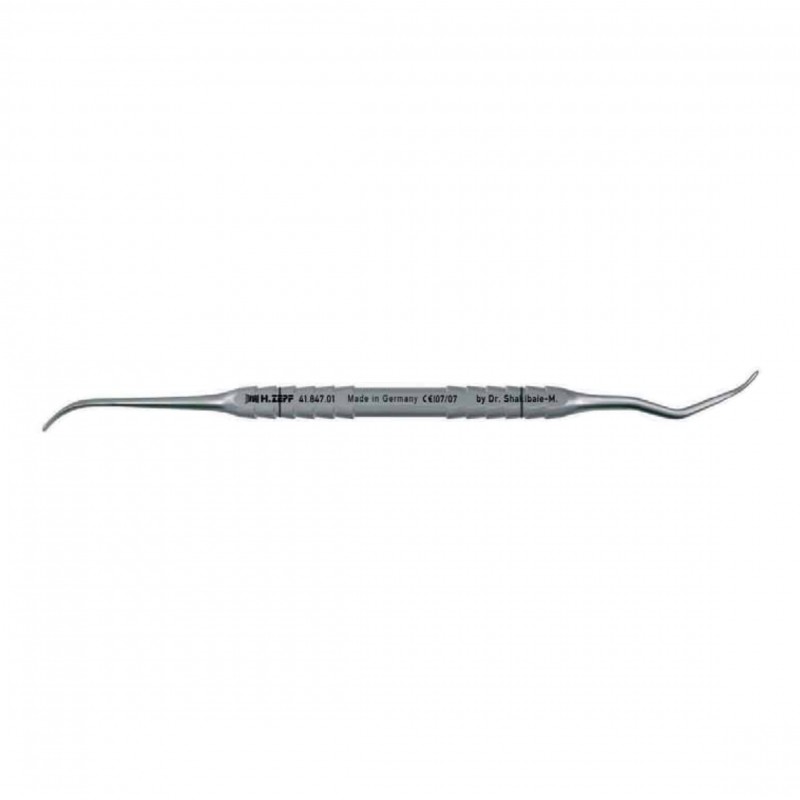

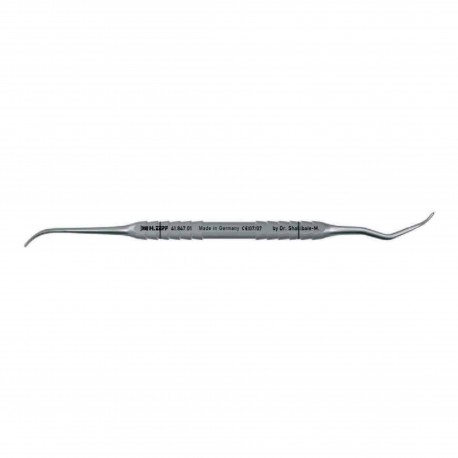

Microsurgical Sinus Lift Instruments for microscopically guided elevation of the sinus bottom
by Dr. Behnam Shakibaie-M.For the development of the new microsurgical sinus lift instruments by Dr. Shakibaie-M., we reverted to the approved conventional forms of sinus lift instruments. The new instruments are approx. 60% smaller, they were sharpened and the surface was abraded. Under corresponding optical magnification and illumination of the operation field (operation microscope or magnifying glass), those features offer the following essential advantages:
- The reduction of the instrument size allows the preparation of a minimalized antral window without restricting the qualities of elevation or augmentation.
- The sharpening of the instruments allows a precise initial fracture of the bone layer which is as thin as parchment.
- The initial fracture is possible as soon as the window is prepared by rotating the instrument, without injuring the Schneider’s membrane.
- The delicate coarseness of the surface of the instruments prevents the unpleasant reflection of light from the operating microscope or the magnifying glass.
| Cod. sorriso | Modello | Descrizione |
| 2098-15071601 | 41.847.01 | Fig.2, sharp, 2.9/2.9 mm, black |
| 2098-15071602 | 41.847.02 | Fig.4, sharp, 2.8/3.8 mm, white |
| 2098-15071603 | 41.847.03 | Fig.5, sharp, 3.6/4.2 mm, orange |
| 2098-15071604 | 41.847.05 | Fig.3, sharp, 2.8/2.9 mm, 45° curved, blue |
| 2098-15071605 | 41.847.08 | Fig.1, sharp, 2.9/2.4 mm, green |
| 2098-15071606 | 41.847.09 | Fig.7, sharp, 2.1/2.1 mm, yellow |
| 2098-15071607 | 41.847.10 | Fig.6, sharp, 2.3/2.3 mm, red |
Pagina del catalogo Helmut Zepf: 07-16
