Trephine

Trephines and Mucosa Membrane Punches

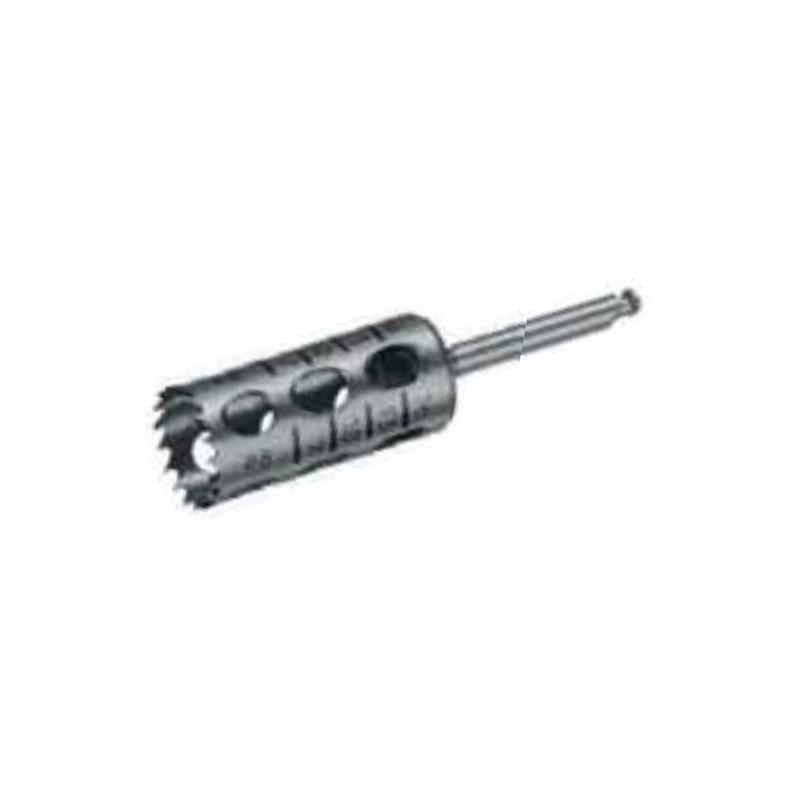

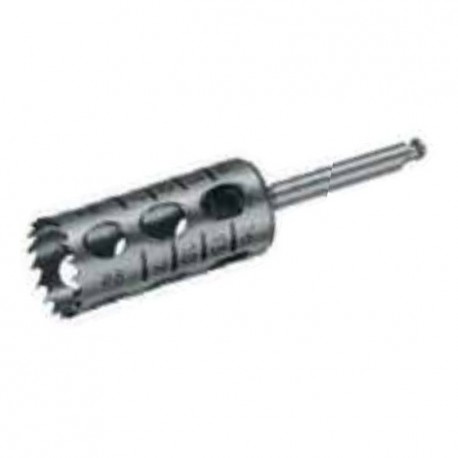

Trephines are used for a gentle and precise removal of an implant. They are for the winning of bone texture as well as to excavate implants accurately. The Trephines are manufactured out of stainless steel. The grading is visibly laser-marked onto the Burs and guarantees a secure depth orientation.

The windows in the body offer a better view for the excavation of the implants and make it easier to reject fragments. The Bur Stand offers a safe and perfectly clean storing and easy positioning through a snap-in system. The marking of the rack allows a fast and uncomplicated identifi cation of the Trephines.

Cod. sorriso	Modello	Descrizione
2098-15071001	08.910.01	Ø In:1.7mm Ø Out:2.3mm T:7 BL:22mm G:7/10/13/16 Ø Inside: 1.7 mm Ø Outside: 2.3 mm Teeth: 7 Body Length: 22 mm Grading: 7/10/13/16
2098-15071002	08.910.02	Ø In:2.3mm Ø Out:2.8mm T:7 BL:22mm G:7/10/13/16 Ø Inside: 2.3 mm Ø Outside: 2.8 mm Teeth: 7 Body Length: 22 mm Grading: 7/10/13/16
2098-15071003	08.910.03	Ø In:2.8mm Ø Out: 3.3mm T: 9 BL:22mm G:7/10/13/16 Ø Inside: 2.8 mm Ø Outside: 3.3 mm Teeth: 9 Body Length: 22 mm Grading: 7/10/13/16
2098-15071004	08.910.04	Ø In:3.3mm Ø Out:3.8mm T:9 BL:22mm G:7/10/13/16 Ø Inside: 3.3 mm Ø Outside: 3.8 mm Teeth: 9 Body Length: 22 mm Grading: 7/10/13/16
2098-15071005	08.910.05	Ø In:4.0mm Ø Out:4.5mm T:11 BL:22mm G:7/10/13/16 Ø Inside: 4.0 mm Ø Outside: 4.5 mm Teeth: 11 Body Length: 22 mm Grading: 7/10/13/16
2098-15071006	08.910.06	Ø In:4.3mm Ø Out:4.8mm T:11 BL:22mm G:7/10/13/16 Ø Inside: 4.3 mm Ø Outside: 4.8 mm Teeth: 11 Body Length: 22 mm Grading: 7/10/13/16
2098-15071007	08.910.07	Ø In:4.8mm Ø Out:5.8mm T:9 BL:22mm G:7/10/13/16 Ø Inside: 4.8 mm Ø Outside: 5.8 mm Teeth: 9 Body Length: 22 mm Grading: 7/10/13/16
2098-15071009	08.910.08	Ø In:6.0mm Ø Out:7.0mm T:12 BL:22mm G:7/10/13/16 Ø Inside: 6.0 mm Ø Outside: 7.0 mm Teeth: 12 Body Length: 22 mm Grading: 7/10/13/16
2098-15071010	08.910.09	Ø In:7.0mm Ø Out:8.0mm T:18 BL:22mm G:7/10/13/16 Ø Inside: 7.0 mm Ø Outside: 8.0 mm Teeth: 18 Body Length: 22 mm Grading: 7/10/13/16
2098-15071011	08.910.10	Ø In:8.0mm Ø Out:9.0mm T:18 BL:22mm G:7/10/13/16 Ø Inside: 8.0 mm Ø Outside: 9.0 mm Teeth: 18 Body Length: 22 mm Grading: 7/10/13/16
2098-15071012	08.910.11	Ø In:9.0mm Ø Out:10.0mm T:18 BL:22mm G:7/10/13/16 Ø Inside: 9.0 mm Ø Outside: 10.0 mm Teeth: 18 Body Length: 22 mm Grading: 7/10/13/16
2098-15071013	08.910.12	Ø In:10.0mm Ø Out:11.0mm T:19 BL:22mm G:7/10/13/16 Ø Inside: 10.0 mm Ø Outside: 11.0 mm Teeth: 19 Body Length: 22 mm Grading: 7/10/13/16
2098-15071008	08.910.13	Ø In:5.0mm Ø Out:6.0mm T:11 BL:22mm G:7/10/13/16 Ø Inside: 5.0 mm Ø Outside: 6.0 mm Teeth: 11 Body Length: 22 mm Grading: 7/10/13/16

Pagina del catalogo Helmut Zepf: 07-10
